Tank Farm Area

• 44,000 m²

Fuel Receipt

• By pipeline
• By trucks

Storage

• Four (4) storage tanks of 6,000 m³ each
• One (1) storage tank of 10.000m3
• Tankage: 34,000 m³ of Jet A-1

Hydrant Refueling System

• Maximum flow rate of 2,000 m³/h by 5 hydrant pumps
• Twin transfer lines to the apron, feeding 7 loops for aircraft refueling
• Fuel transfer and facilities for the into-plane companies

Systems

• Fuel quality protection and control
• Fully automated operations: 2 hot redundant PLCs (Programmable Logic Controller) and SCADA (Supervisory Control and Data Acquisition) by two hot redundant Servers.
• On-line fuel stock management
• Emergency fuel shut off
• Automated fire fighting
• Environmental management system in force for the design, construction and operation of all facilities

Fuel Receipt by Pipeline

• Fuel transfer from the refinery, directly connected to OFC, without any intermediate storage depot
• 10' underground pipeline of a total length of 53 km, dedicated to Jet A-1
• Maximum flow rate: 300 m³/h
• Fully automated operations, interconnecting also the OFC's and the refinery`s automation systems

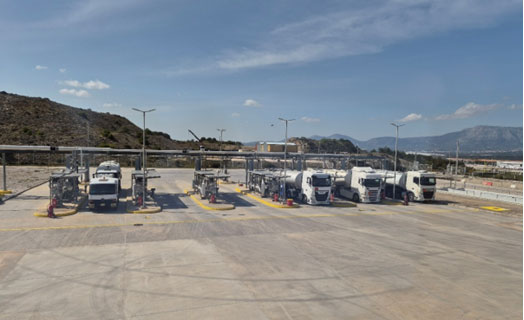

Fuel Receipt by Road Tank Trucks

• 6 off-loading islands
• Maximum off-loading flow rate: 600 m³/h
• Fully automated system, incorporating requirements on fuel quality and safety
• Closed sampling system
• Impermeable concrete and floor construction, covering all off-loading islands and sewer system connected to the oil-water separator

Truck (Refueller & Road Tank Truck) Bottom Loading

• One (1) loading island
• Maximum loading flow rate: 120 m³/h
• Fully automated system, incorporating requirements on fuel quality and safety
• Closed sampling system
• Impermeable concrete and floor construction, covering all loading islands and sewer system connected to the oil-water separator

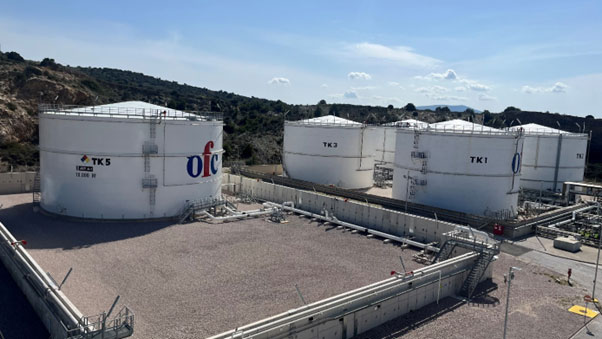

Storage Tanks

• Five (5) aboveground, vertical, fixed roof tanks, fully epoxy-coated (internally and externally)
• Cone down bottom with central sump for fuel quality controls
• Double bottom with continuous monitoring by vacuum system for leakage detection
• Floating suction
• Auto-Tank gauging system
• Two independent systems for tank overfill protection
• Several high and low level alarms

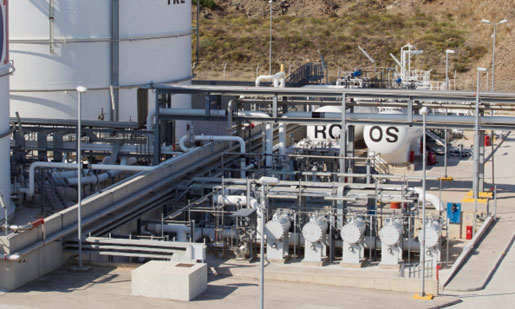

Hydrant Pump Station for Aircraft Refueling

• Five (5) hydrant pumps, powered by frequency converters
• Maximum flow rate: 2,000 m³/h
• Fully automated system, controlling the pumps according to aircraft refueling demands and providing the maximum desired pressure and flow for timely and safely refueling services

Hydrant Refueling System

• 10 km of 20' underground twin transfer lines
• 9 valve vaults for fuel distribution to aircraft stands
• 10 km underground distribution pipes in 7 loops and 144 fuel pits
• Independent fuel transfer to into-plane Jet A-1 facilities for test rig, Refuelers loading, etc.
• Automation system, which controls fuel flow to each loop, adjusting flow rates at the expected pressure for timely aircraft refueling

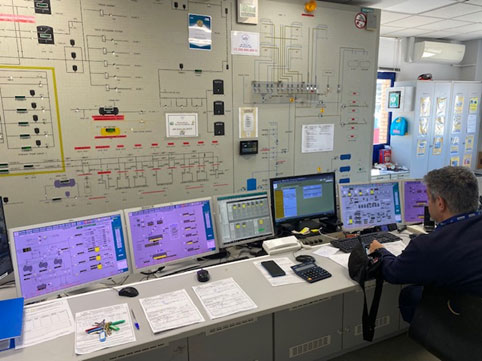

Automated Operation in all OFC Facilities

• Fully automated operations PLCs and SCADA system
• Real time process monitoring and visualisation of all operations (fuel, fire fighting, environmental protection, safety, emergency systems)
• Statistics and graphs of the operations for all major pieces of equipment
• Emergency Shutdown of fuel transfer in case of emergency, stopping all pumps, closing all valves and transferring alarm message to OFC, the Fire Brigade and the Airport Operations Center.
• Tightness control system of testing the integrity of the underground piping network through special software and electromechanical equipment

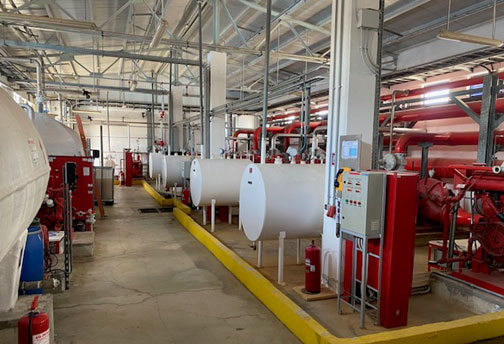

Fire Fighting System

• All storage tanks are equipped with fixed firefighting system (foam, cooling water)
• Top pouring for Tank fire extinguishment & cooling rings
• Electrically and Diesel Fire water and foam pumps
• Hot telephone line with airport’s fire brigade
• The Fire Fighting system is UL / FM approved
• Various sizes and types of fire extinguishers
